High-Performance Cartridge Heaters
Precision heating solutions for demanding industrial applications
ISO 9001 Certified
CE Approved
UL Listed
Premium Quality
High Temperature
Customizable
Long Lifespan
Precision heating solutions for demanding industrial applications
High Temperature
Customizable
Long Lifespan

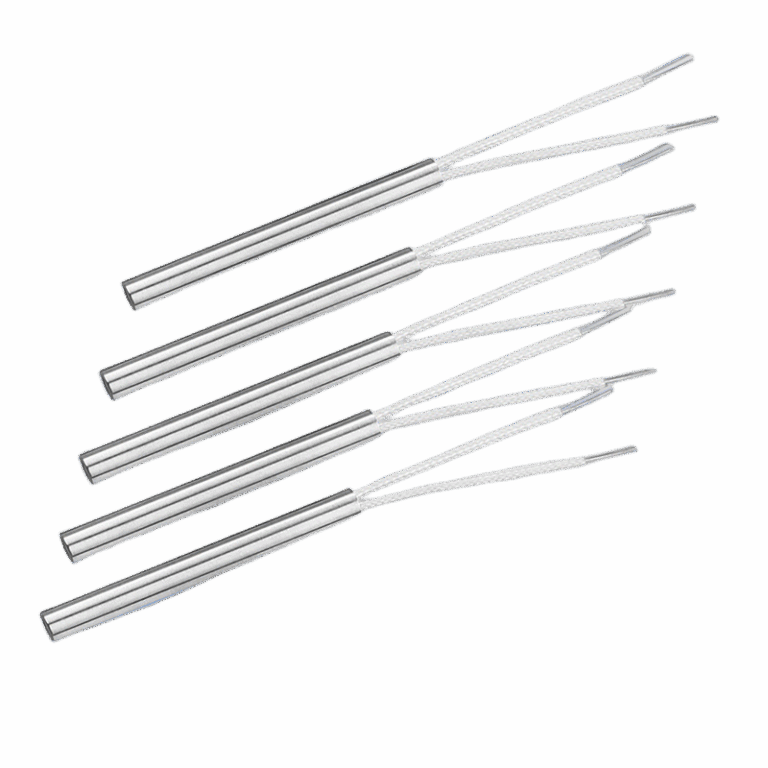

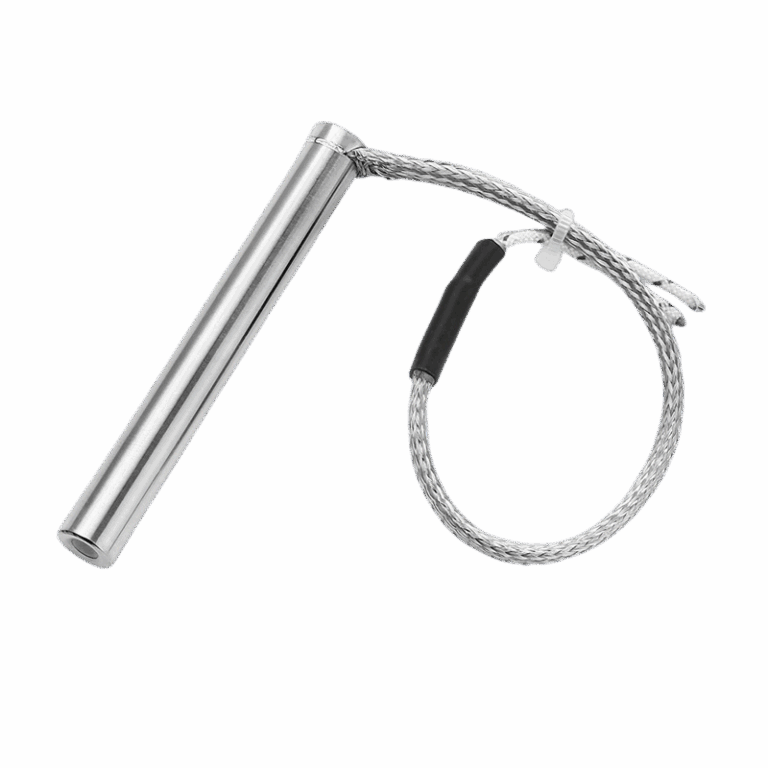

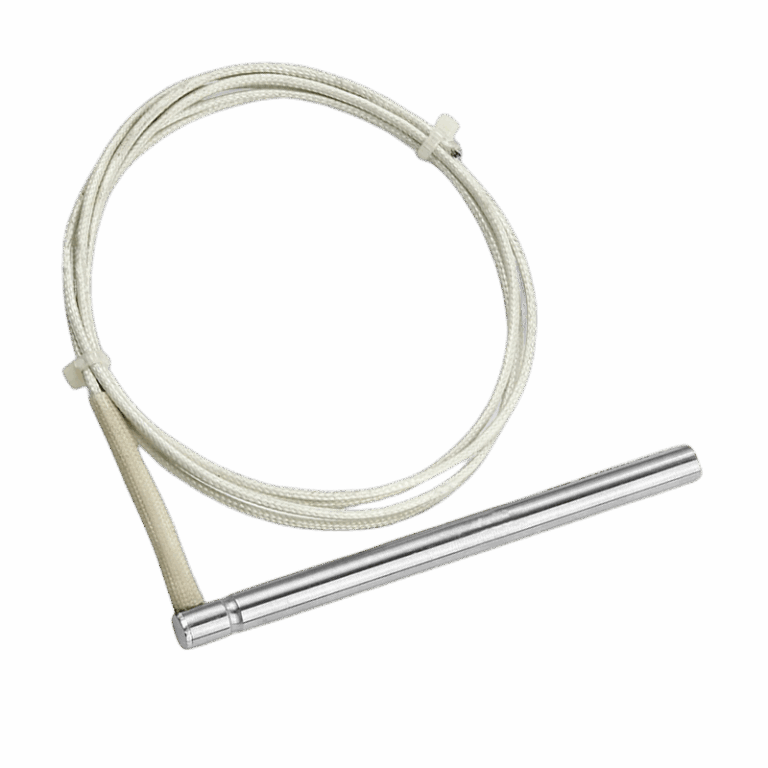

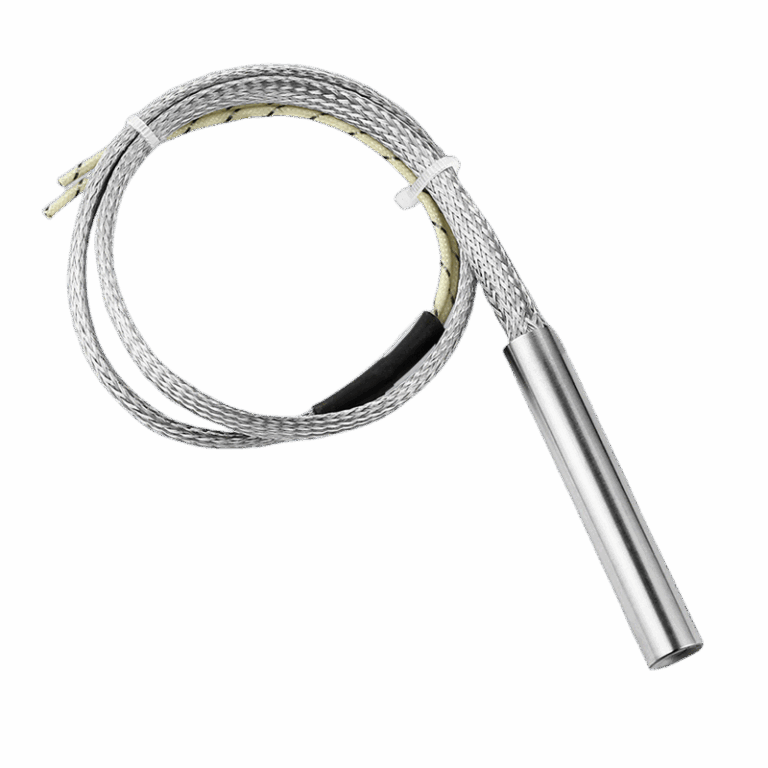

SZ HEAT cartridge heaters deliver precise, concentrated heat in the most demanding industrial environments. Our high-performance heating elements are engineered for optimal heat transfer, exceptional durability, and consistent temperature control across diverse applications.
99.8% operational reliability in continuous use environments
±1°C temperature accuracy for critical processes
Up to 30% longer service life than industry standard
Tailored designs for your specific application needs
Our cartridge heaters deliver exceptional performance through innovative design and premium materials.
Our high-density compaction technology ensures maximum heat transfer efficiency, reducing energy consumption while delivering consistent thermal output to your application.
Precision-engineered heating elements ensure even temperature distribution throughout the entire heated area, eliminating hot spots and providing consistent results for your critical processes.
Our cartridge heaters feature premium resistance wire and MgO insulation, significantly extending operational lifespan even in demanding industrial environments with high cycling requirements.
Optimized internal construction allows for rapid temperature rise, reducing cycle times and increasing production efficiency while maintaining precise temperature control throughout operation.
Choose from a wide range of lead wire types, lengths, and termination styles to perfectly match your equipment requirements, simplifying installation and ensuring reliable electrical connections.
Manufactured with high-grade stainless steel sheaths and precision-swaged design, our cartridge heaters withstand harsh industrial environments, thermal cycling, and mechanical stress with exceptional durability.
| Specification | Details |
|---|---|
| Diameter Range | 1/8" (3.2mm) to 1" (25.4mm) |
| Length Range | 1" (25.4mm) to 36" (914.4mm) |
| Wattage Options | 25W to 5000W (dependent on dimensions) |
| Maximum Operating Temperature | Up to 1400°F (760°C) |
| Sheath Material Options | Stainless Steel 304, Stainless Steel 316, Incoloy® 800, Inconel® 600 |
| Lead/Terminal Options | Fiberglass Leads, High-Temperature Teflon, Ceramic Beads, Screw Terminals, Post Terminals |
| Voltage Options | 120V, 208V, 240V, 480V (custom voltages available) |
| Resistance Tolerance | ±10% standard (tighter tolerances available) |
1/8" (3.2mm) to 1" (25.4mm)
1" (25.4mm) to 36" (914.4mm)
25W to 5000W (dependent on dimensions)
Up to 1400°F (760°C)
Stainless Steel 304, Stainless Steel 316, Incoloy® 800, Inconel® 600
Fiberglass Leads, High-Temperature Teflon, Ceramic Beads, Screw Terminals, Post Terminals
120V, 208V, 240V, 480V (custom voltages available)
±10% standard (tighter tolerances available)
Need specifications outside these ranges? Our engineering team can develop custom solutions to meet your exact requirements.
Our cartridge heaters deliver reliable performance across diverse industries and applications
Precise temperature control for consistent molding results
Uniform heating for high-quality metal casting processes
Reliable heat sealing for efficient packaging operations
Safe, hygienic heating for food production systems
Precision heating for critical healthcare applications
Ultra-precise temperature control for sensitive processes
Not sure which solution fits your application?
Our commitment to excellence and innovation makes us the preferred choice for industrial heating solutions worldwide.
Our state-of-the-art production facilities employ precision engineering techniques to ensure every cartridge heater meets the highest standards of performance and reliability.
Each cartridge heater undergoes rigorous testing and inspection procedures to verify dimensional accuracy, electrical integrity, and thermal performance before leaving our facility.
Our engineering team works closely with clients to design and manufacture cartridge heaters tailored to specific application requirements, ensuring optimal performance in your unique operating environment.
We understand the critical nature of heating components in your production process. Our streamlined manufacturing and efficient logistics ensure prompt delivery to minimize your downtime.
